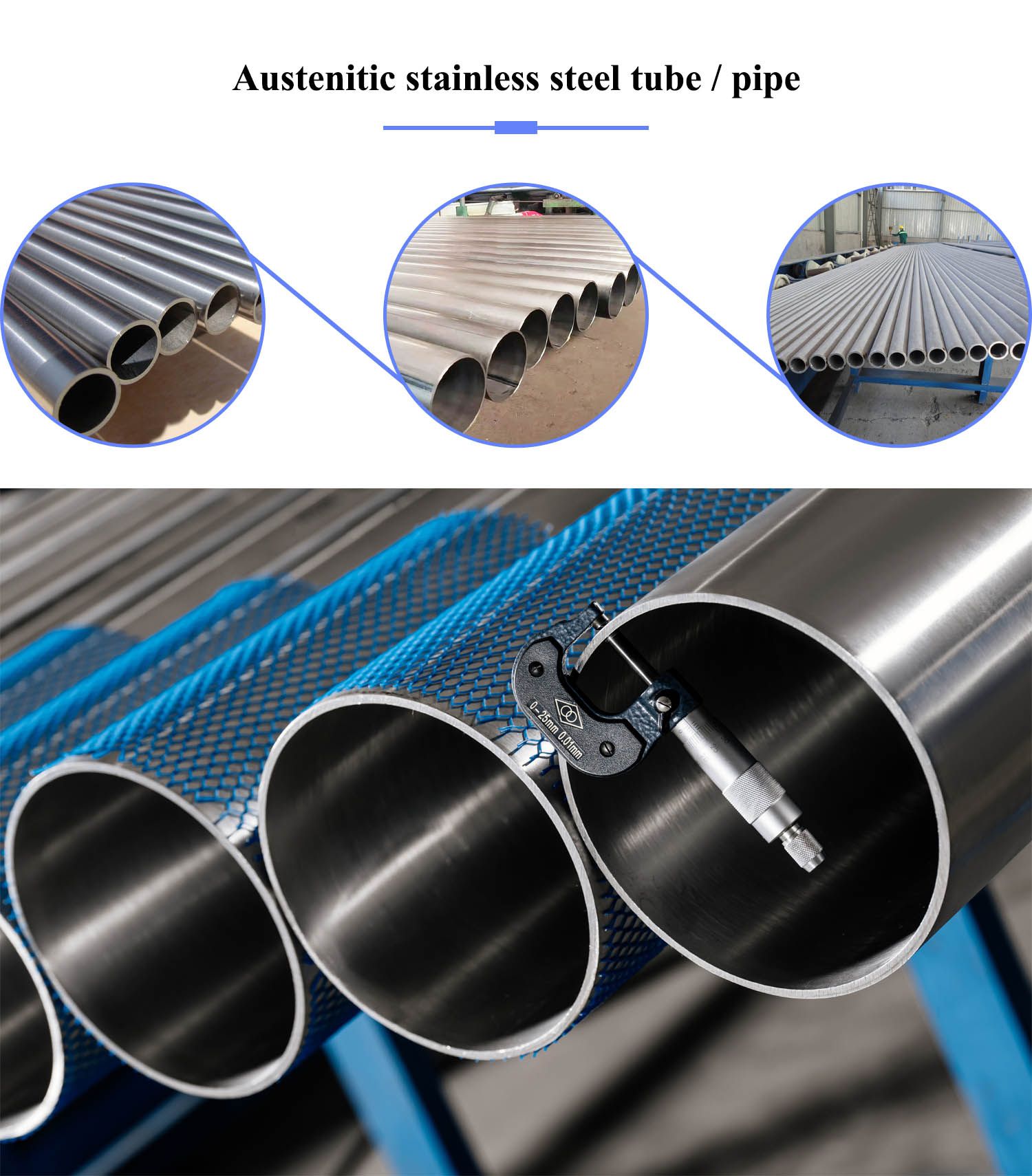

Austenitic Seamless Stainless Steel Pipe

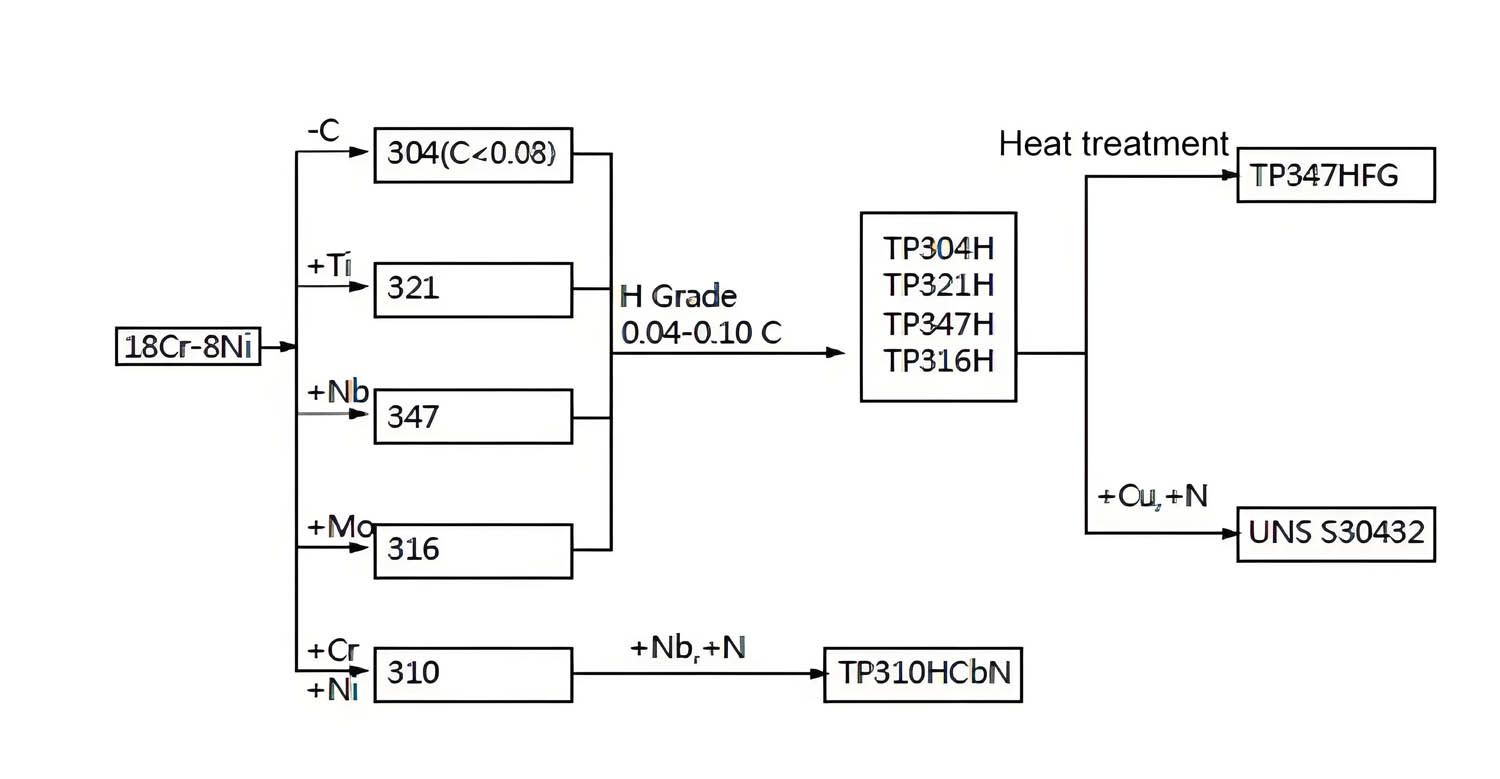

Austenitic seamless stainless steel pipe refers to seamless steel tubing whose microstructure remains stable austenite at room temperature. These steels typically use chromium and nickel as the primary alloying elements. A typical example is 18Cr-8Ni (Grade 304) stainless steel. On this basis, additional elements such as molybdenum, titanium, niobium, and copper are introduced to develop high-alloy grades that meet the requirements of more demanding service environments.

Austenitic stainless steels are non-magnetic and exhibit excellent toughness and plasticity, although their strength is relatively low. They cannot be strengthened through phase transformation and can only be strengthened through cold working. When elements such as S, Ca, Se, or Te are added, the material can achieve improved machinability.

Unlike welded pipes, seamless pipes are directly formed through hot extrusion or cold rolling processes, meaning there is no weld seam along the pipe wall. This results in higher pressure resistance, uniform wall thickness, and no risk of weld seam corrosion, making them ideal structural and fluid-transport materials for industries such as petrochemical, shipbuilding, food and pharmaceutical processing, energy equipment, and fluid transportation.

Common Grades:
304 / 304L, 316 / 316L, 321, 347H, 310S, 904L

Specifications

Product Advantages

1.Excellent Corrosion Resistance

A natural passivation film forms on the surface, providing resistance to atmospheric corrosion, acids, alkalis, and certain chlorides. 316L, containing molybdenum, offers enhanced resistance to pitting and crevice corrosion, making it suitable for seawater and chemical media.

2.High and Low Temperature Resistance

The material can operate continuously up to 800°C, with short-term resistance up to 1000–1200°C. It maintains excellent toughness even at low temperatures, preventing brittle fracture.

3.Reliable Seamless Structure

Uniform wall thickness and absence of weld seams eliminate weld-related defects, providing high pressure capacity, superior sealing performance, and reduced leakage risk.

4.Excellent Processability

Good plasticity allows for bending, stamping, and flaring operations. It also offers excellent weldability and strong resistance to intergranular corrosion after welding.

5.Hygienic and Environmentally Friendly

The inner surface is smooth, non-scaling, and easy to clean. It is non-toxic and non-leaching, meeting hygiene requirements for food processing, pharmaceutical production, and drinking water systems.

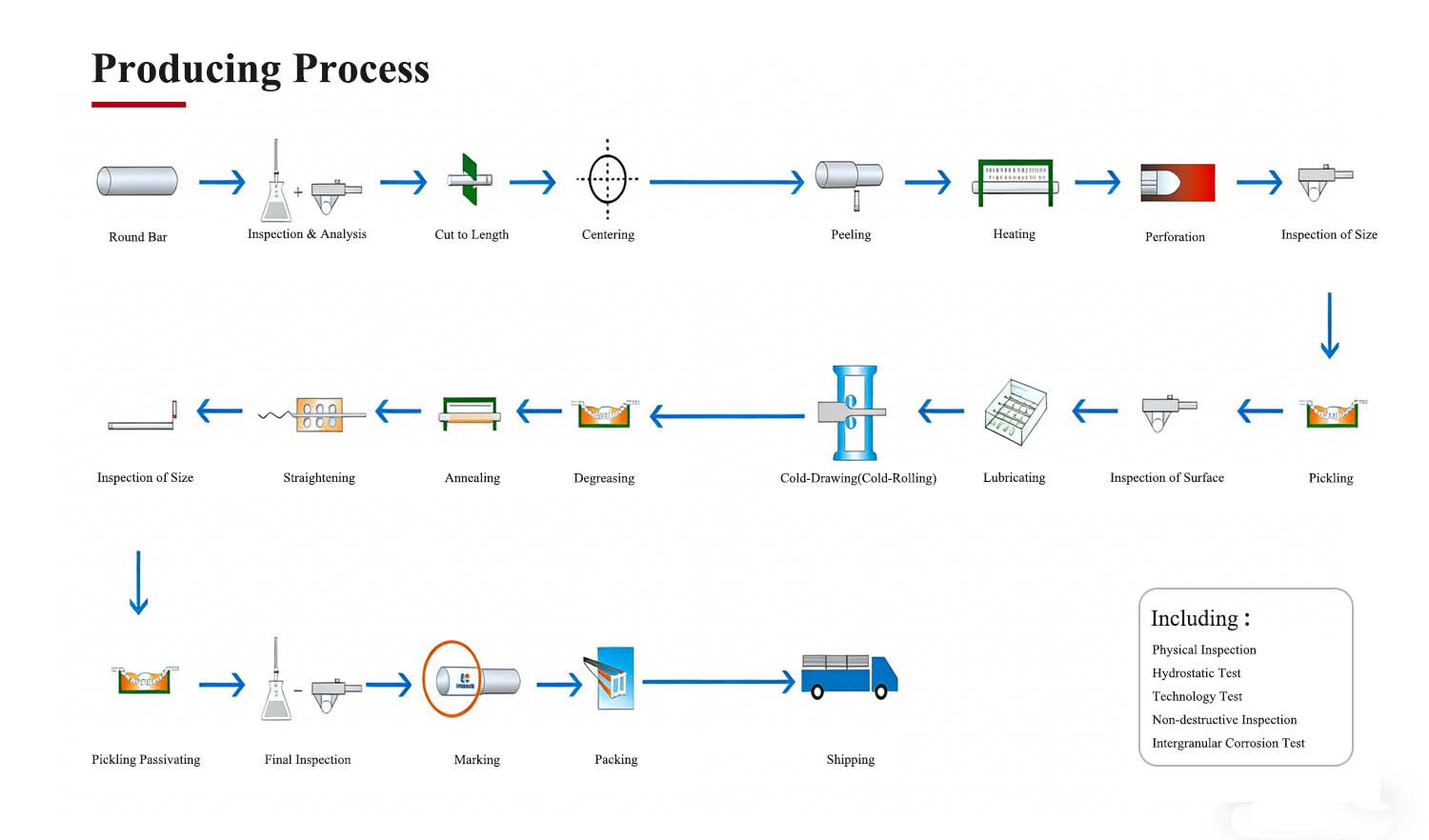

Austenitic Stainless Steel Production Process

Round billet heating and piercing (hot rolling process)

Continuous rolling and sizing

Cold drawing or cold rolling finishing

Solution heat treatment

Pickling and passivation

Non-destructive testing (UT / ET)

Hydrostatic pressure testing

Final dimensional and surface inspection

Solution heat treatment is a critical step. It removes cold-working stress, restores the austenitic microstructure, and improves corrosion resistance.

Product Standards

ASME SA213 — Seamless ferritic and austenitic alloy steel boiler, superheater, and heat-exchanger tubes

ASME SA312 — Seamless, welded, and heavily cold-worked austenitic stainless steel pipes

ASTM A312 — Austenitic stainless steel seamless and welded pipes

ASTM A213 — Seamless tubes for boilers and heat exchangers

ASTM A269 — Seamless and welded austenitic stainless steel tubing for general service

EN 10216-5 — European standard for stainless steel tubes for pressure purposes

GB/T 14976 — Chinese standard for stainless steel seamless pipes for fluid transport

Non-standard sizes and delivery conditions can be customized according to customer requirements.

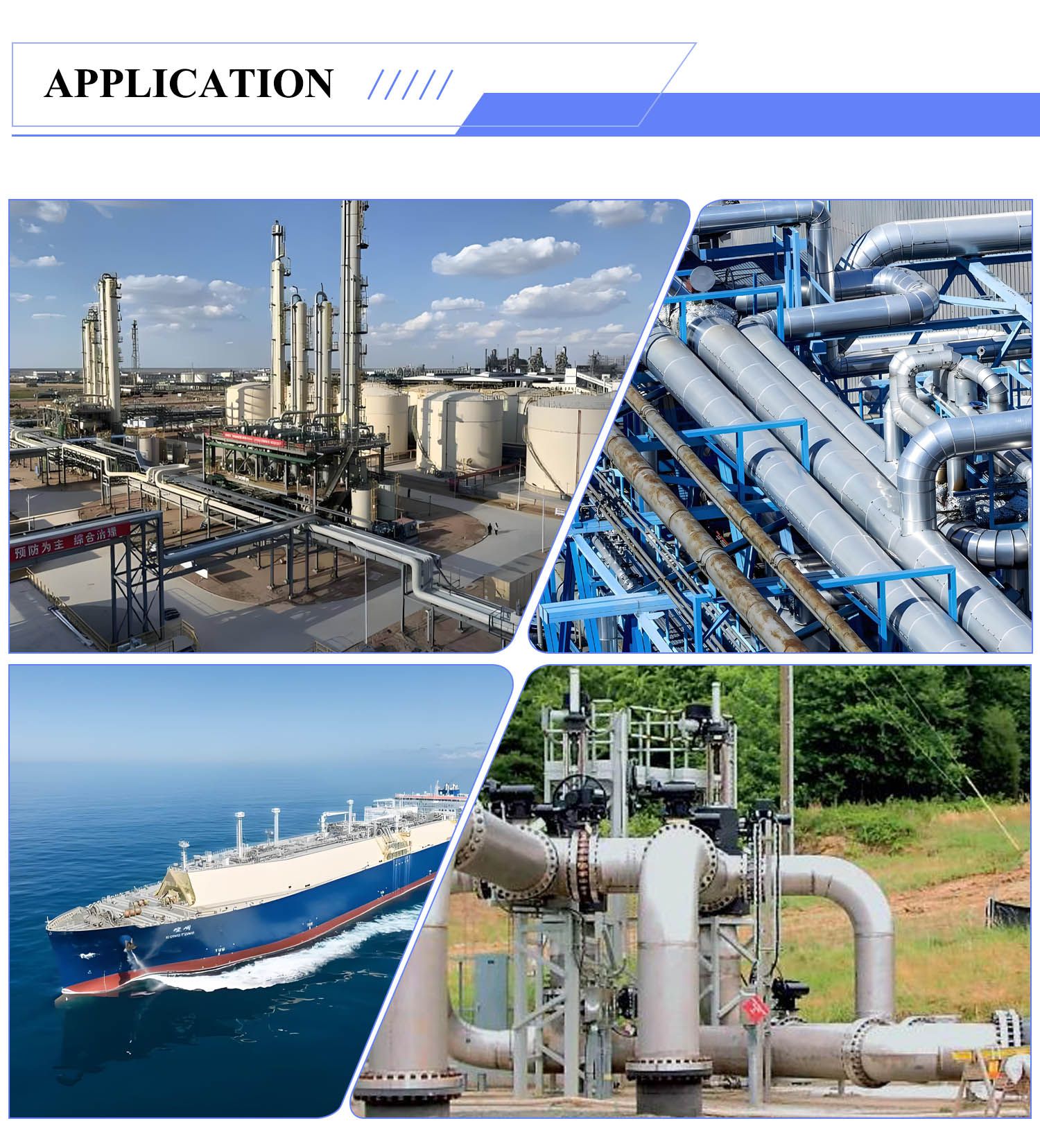

Applications

Petrochemical Industry

Reactors, heat exchangers, pipelines, and corrosion-resistant process piping systems.

Food and Pharmaceutical Industry

Sanitary pipelines for dairy, beverages, and pharmaceutical fluid transport systems.

Energy and Power Generation

Boilers, superheaters, heat exchangers, and high-temperature steam pipelines.

Environmental and Water Treatment

Wastewater treatment, seawater desalination, and pure water transportation systems.

Shipbuilding and Offshore Engineering

Shipboard piping systems and corrosion-resistant pipelines for offshore platforms.

Machinery and Instrumentation

Precision instrument tubing, structural pipes, and non-magnetic components.
