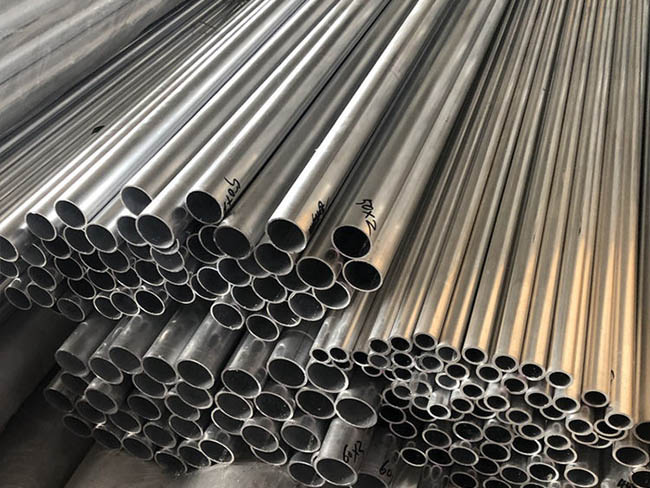

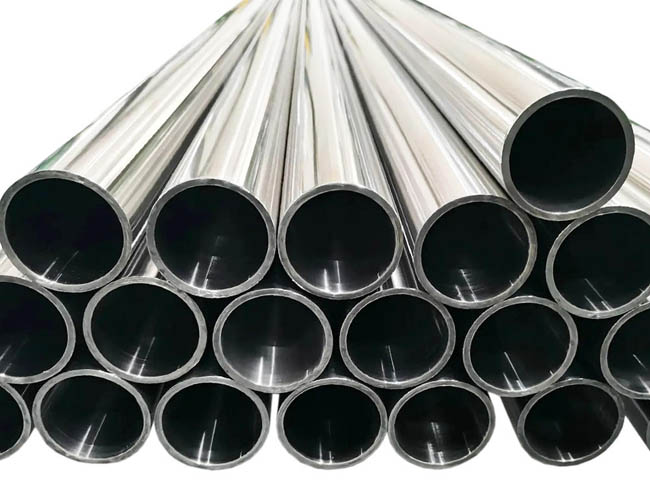

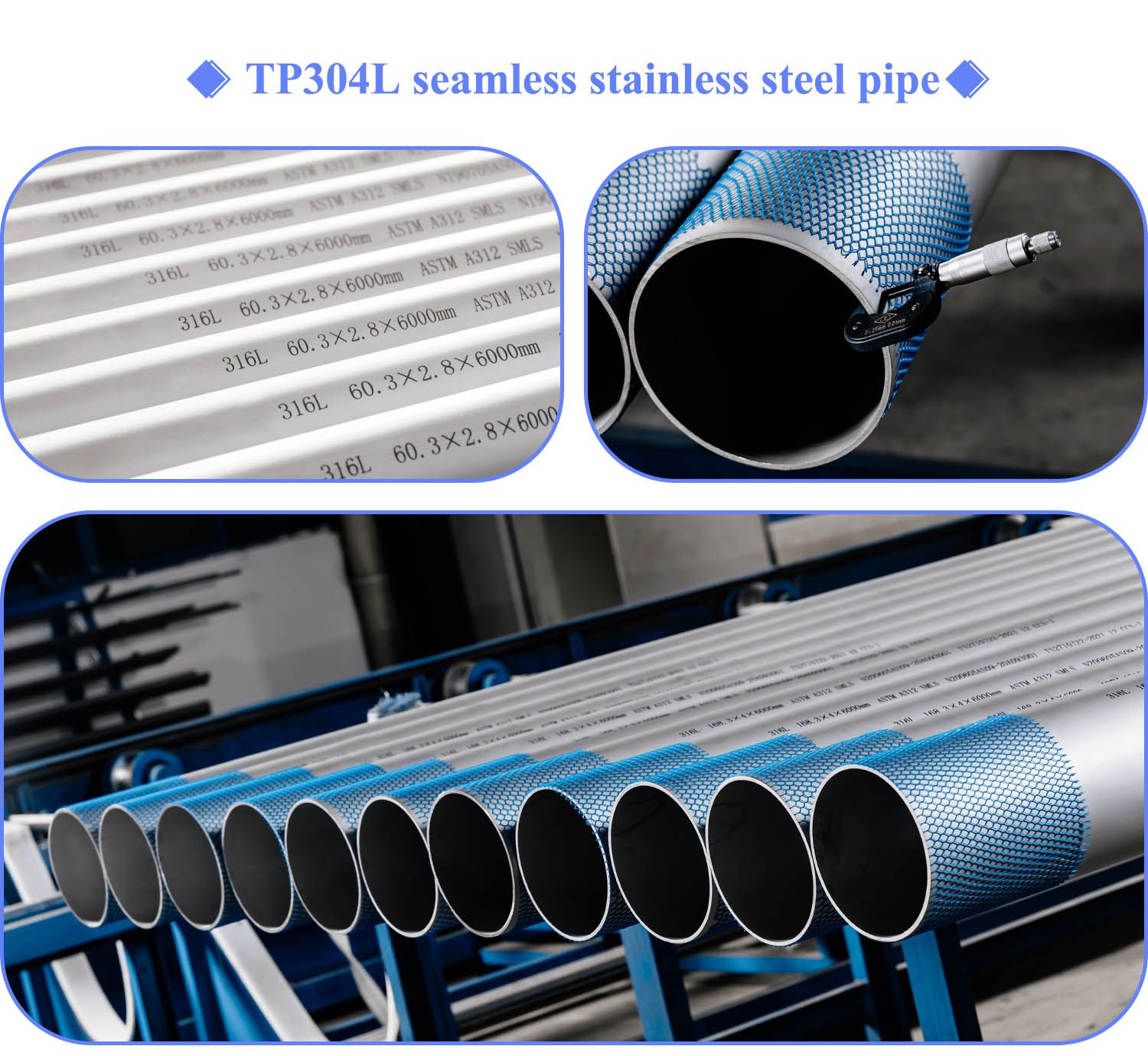

TP304L Seamless Stainless Steel Pipe

304L stainless steel pipe is produced from the low-carbon version of the widely used austenitic 18-8 stainless steel. The reduced carbon content allows it to be welded without causing localized corrosion. This is because 304L stainless steel produces less carbide precipitation during welding, which significantly reduces the risk of intergranular corrosion.

TP304L seamless stainless steel pipe (ASTM standard) corresponds to 304L stainless steel, featuring a stable austenitic microstructure and excellent overall performance in various industrial environments.

TP304L stainless steel seamless pipes are manufactured without fillet welds or welded seams. Due to the high-quality material used, these pipes are extremely durable and strong, although their price is relatively higher. They are widely used in high-pressure and high-temperature applications, including boilers, heat exchangers, and condensers. Our seamless pipes are available in sizes ranging from 1/2 inch to 24 inches.

Chemical Composition of TP304L Seamless Stainless Steel Pipe

These chemical elements provide the pipe with excellent oxidation resistance and corrosion resistance. TP304L generally complies with international standards such as ASTM A312 TP304L and EN 10297-1 304L, ensuring reliable product quality.

Specifications of TP304L Seamless Pipe

Mechanical Properties

Physical Properties

Core Advantages of TP304L Seamless Stainless Steel Pipe

1. Excellent Corrosion Resistance
   The low carbon content reduces carbide precipitation at high temperatures, improving corrosion resistance.

2. Good Ductility
   The austenitic structure provides high plasticity, making the pipe easy to form and weld.

3. Hygienic and Reliable
   The smooth inner surface makes cleaning easy and meets the requirements of the food and pharmaceutical industries.

4. High Temperature Stability
   Maintains stable performance at temperatures below 800 ℃.

5. Good Machinability
   Suitable for cutting, bending, stamping, and other machining processes.

6. Excellent Low-Temperature Toughness
   Maintains high impact toughness even at temperatures above −196 ℃, making it suitable for cryogenic applications such as LNG pipelines and storage equipment.

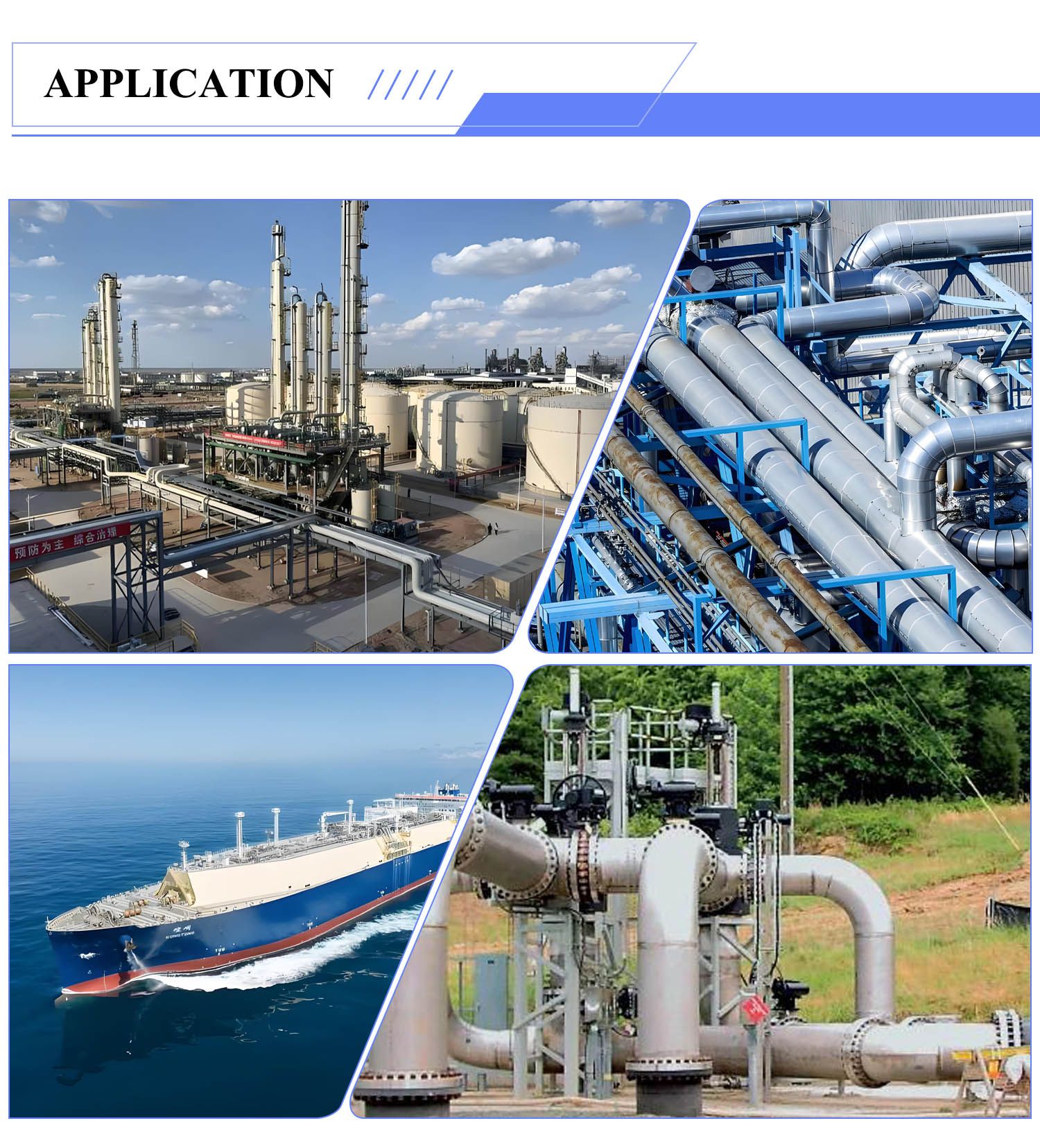

Applications of TP304L Seamless Pipe

• Chemical Industry
  Used for pipelines carrying corrosive media such as organic acids, inorganic acids, and alkaline solutions.

• Pharmaceutical Industry
  Meets GMP requirements, with smooth inner surfaces that are easy to clean.

• Food and Beverage Industry
  Prevents metal ion migration and ensures food safety.

• Petrochemical Industry
  Suitable for media containing chlorine and sulfur compounds.

• Marine and Shipbuilding
  Resistant to seawater corrosion and suitable for ship pipelines and offshore platforms.

Manufacturing Process

Compared with welded pipes, our TP304L seamless pipes are produced using Cold Drawn or Cold Rolled processes. The typical production flow includes:

1. Stainless steel billet inspection

2. Heating and piercing

3. Hot rolling or continuous rolling

4. Cold drawing or cold rolling

5. Solution heat treatment

6. Pickling and passivation

7. Straightening and sizing

8. Non-destructive testing (NDT)

9. Hydrostatic pressure testing

10. Finished product inspection

Manufacturing Advantages

High Pressure Capacity
The seamless structure eliminates weak points caused by welds, enabling safe transportation of high-pressure fluids.

High Dimensional Accuracy
Advanced cold rolling equipment ensures extremely uniform wall thickness and tight outer diameter tolerances.

Smooth Inner Surface
Through special acid pickling annealing (AP) or bright annealing (BA) treatments, the inner wall roughness is minimized, preventing scaling and reducing fluid resistance.
